Tugas Jarkom Ke 4

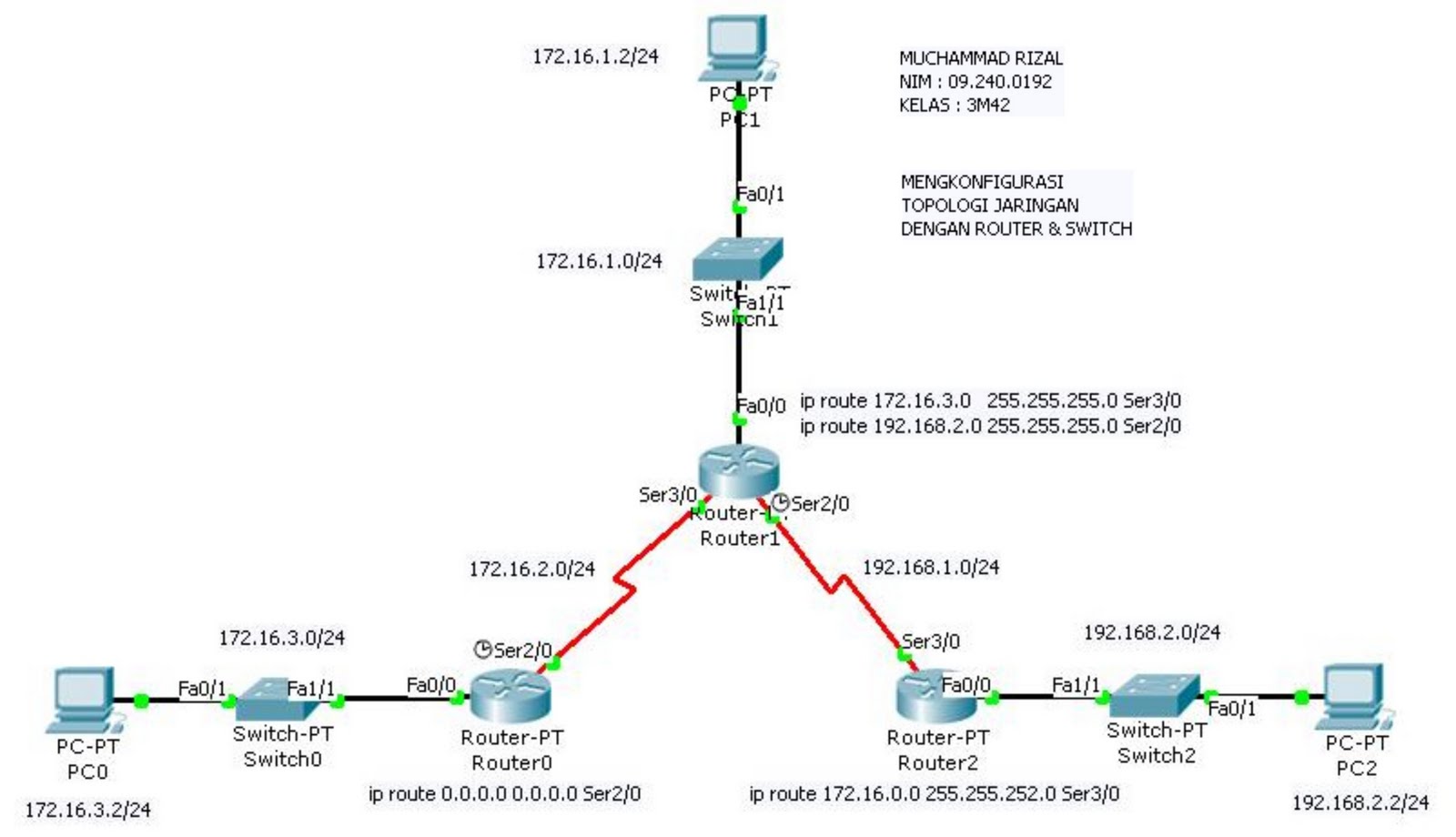

Dalam tugas Jaringan Komputer III yang ke 4 adalah Mengkonfigurasi STATIS ROUTE , agar PC dapat terkoneksi dengan benar dengan melakukan setting pada Router dan switch.




Adapun Konfigurasi PC0, PC1, dan PC2 adalah sebagai Berikut :

Dan berikut adalah Konfigurasi pada Router0, Router1, dan Router2 :

Konfigurasi Router0:

Router0>enable
Router0#conf t
Router0(config)#int fa0/0
Router0(config-if)#ip add 172.16.3.1 255.255.255.0
Router0(config-if)#no shutdown
Router0(config-if)#exit
Router0(config)#int Ser2/0
Router0(config-if)#ip add 172.16.2.1 255.255.255.0
Router0(config-if)#clock rate 64000
Router0(config-if)#no shutdown
Router0(config-if)#exit
Router0(config)#
­
Konfigurasi ip route di Router0:
Router0(config)#ip route 0.0.0.0 0.0.0.0 Ser2/0
­
­
­

Konfigurasi Router1:

Router1>enable
Router1#conf t
Router1(config)#int fa0/0
Router1(config-if)#ip add 172.16.1.1 255.255.255.0
Router1(config-if)#no shutdown
Router1(config-if)#exit
Router1(config)#int Ser3/0
Router1(config-if)#ip add 172.16.2.2 255.255.255.0
Router1(config-if)#no shutdown
Router1(config-if)#exit
Router1(config)#int Ser2/0
Router1(config-if)#ip add 192.168.1.2 255.255.255.0
Router1(config-if)#clock rate 64000
Router1(config-if)#no shutdown
Router1(config-if)#exit
Router1(config)#
­
Konfigurasi ip route di Router1:
Router1(config)#ip route 172.16.3.0 255.255.255.0 Ser3/0
Router1(config)#ip route 192.168.2.0 255.255.255.0 Ser2/0
­
­
­

Konfigurasi Router2:

Router2>ena
Router2#conf t
Router2(config)#int fa0/0
Router2(config-if)#ip add 192.168.2.1 255.255.255.0
Router2(config-if)#no shutdown
Router2(config-if)#exit
Router2(config)#int Ser3/0
Router2(config-if)#ip add 192.168.1.1 255.255.255.0
Router2(config-if)#no shutdown
Router2(config-if)#exit
Router2(config)#
­
Konfigurasi ip route di Router2:
Router2(config)#ip route 172.16.0.0 255.255.252.0 Ser3/0
­
